Drill Bit & Collet Storage Module
Features
- Easy to use : Patented structural design, assembly does not require any tools!
- Multipurpose : Place a variety of tools, parts, cutting tools!
- Modular design : Can be big or small, combination according to your needs, make full use of space!
- Color management : Classification and management is very easy, distinguish easily and save time!
SPECIFICATIONS
| No. | Example |
| 1 | End Mill、Drill、Reamer(Tungsten 、HSS) |
| 2 | Throw-away End Mill、Drill |
| 3 | Exchangeable End Mill(Throw-away、Tungsten) |
| 4 | Connection rod(Tungsten、Steel) |
| 5 | Boring Bar |
| 6 | ER Collet |
| 7 | Edge finder(Eccentric、Optical) |
| 8 | Diamond & CBN Tools |
Machine Size

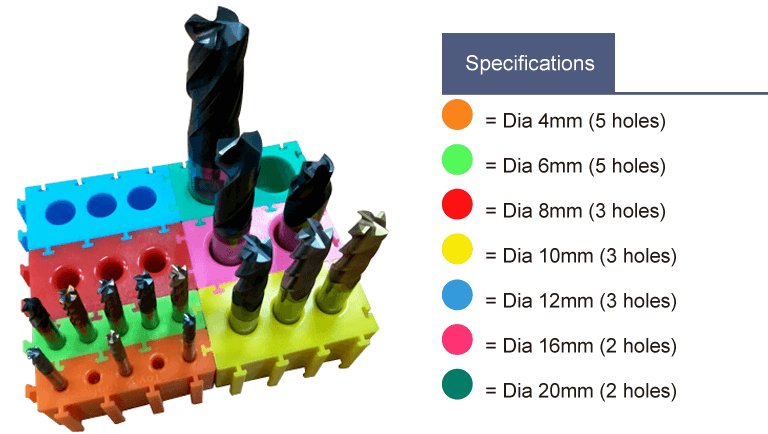

| No. | Color | Size | |
|---|---|---|---|
| 1 | Orange | L*W*H: 8*2*4cm | Dia:Ø4mm | 5holes | 12pcs/set |
| 2 | Light Green | L*W*H: 8*2*4cm | Dia:Ø6mm | 5holes | 12pcs/set |
| 3 | Red | L*W*H: 8*4*4cm | Dia:Ø8mm | 3holes | 6pcs/set |
| 4 | Yellow | L*W*H: 8*4*4cm | Dia:Ø10mm | 3 holes | 6pcs/set |
| 5 | Blue | L*W*H: 8*4*4cm | Dia:Ø12mm | 3holes | 6pcs/set |
| 6 | Pink | L*W*H: 8*4*4cm | Dia:Ø16mm | 2holes | 6pcs/set |
| 7 | Dark Green | L*W*H: 8*4*4cm | Dia:Ø20mm | 2holes | 6pcs/set |
